1) IC-29 Intercom Amplifier | 1) BB-198 BackBox (Optional) |
1) IM-827 Gooseneck Microphone | 1) JP-100 Headset Jack |
1) DT-108K with HC-414 Headset / Connector | 1) FS-77 Footswitch |
1) IS-3002 Control Room Speaker | 1) IM-831C Hanging Microphone (For Cathlabs) |
1) OS-161-4WP Speaker | 1) JP-3FS Flush Mount Receptacle |
This setup is for a typical hosptial Cath-lab where the control room operator is always listening to the procedure room, and can step on a footswitch to talk out to the procedure room. The procedure room is completely hands-free. The control room operator can choose between wearing a headset or using a speaker/microphone combination. The control room speaker and microphone are disconnected when the headset is plugged into the headset jack. |

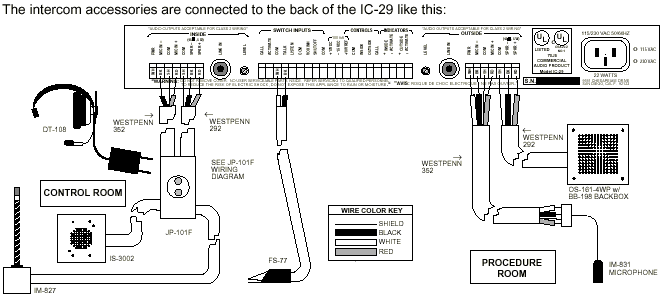

NOTE: Complete setup information including internal jumper settings and detailed wiring is available for download in PDF form. IC-29 Intercom Amplifier - Typical Cathlab Setup |
